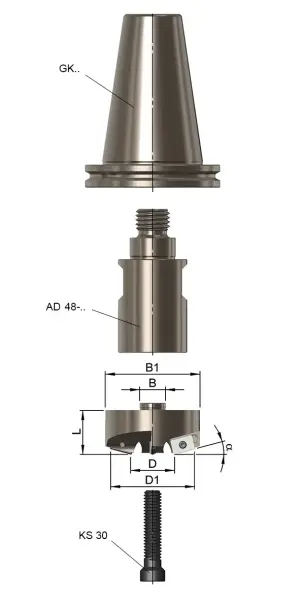

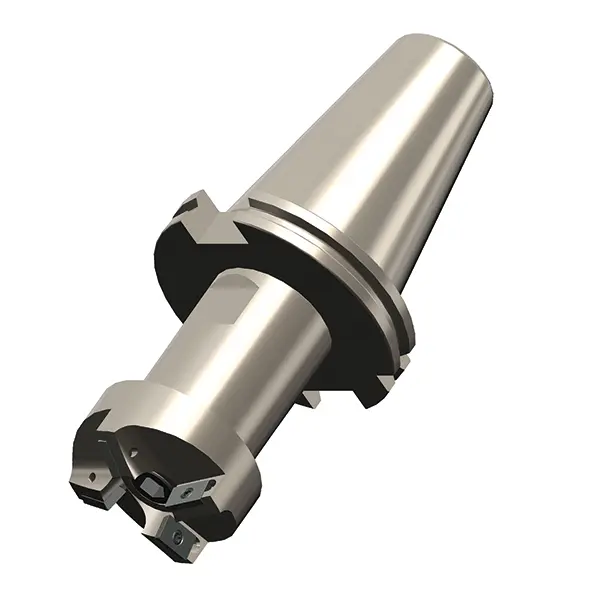

ER 50-15-4 45

Insert seat

B06

Diameter (D) [mm]

36

Diameter 1 (D1) [mm]

57,2

Angle (a) [°]

45°

Length (L) [mm]

31

Width of collar (B) [mm]

18

Flange diameter (B1) [mm]

61

Number of teeth (Z)

4

JMB06-41AR08-K15M JMB06-48R08-TA50 JMB06-41AR08-TA50 JMB06-42AR08-HT50 JMB06-41R08-HT50 JMB06-42AR08-K15M JMB06-44R08-TA50 JMB06-42AR08-Ti20 JMB06-42R08-HT50 JMB06-46R08-HT50 JMB06-42R08-KT28 JMB06-46R08-Ti20 JMB06-42R08-Ti20 JMB06-47R08-HT50 JMB06-47R08-Ti20 JMB06-42R10-TA50 JMB06-48R08-Ti20 JMB06-42R10-Ti20 JMB06-42R100-TA50 JMB06-42R100-Ti20 JMB06-42R15-TA50 JMB06-42R30-Ti20 JMB06-42R15-Ti20 JMB06-42R20-TA50 JMB06-42R20-Ti20 JMB06-42R30-TA50 JMB06-42R40-Ti20 JMB06-42R25-TA50 JMB06-42R35-TA50 JMB06-42R40-TA50 JMB06-42R50-TA50 JMB06-42R50-Ti20 JMB06-42R60-TA50 JMB06-42R80-TA50
