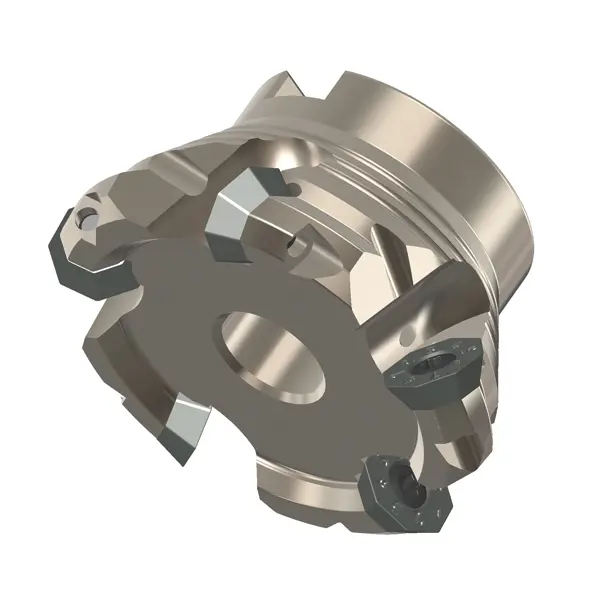

Product image 1 of the product “45PP-125-525-8 ”

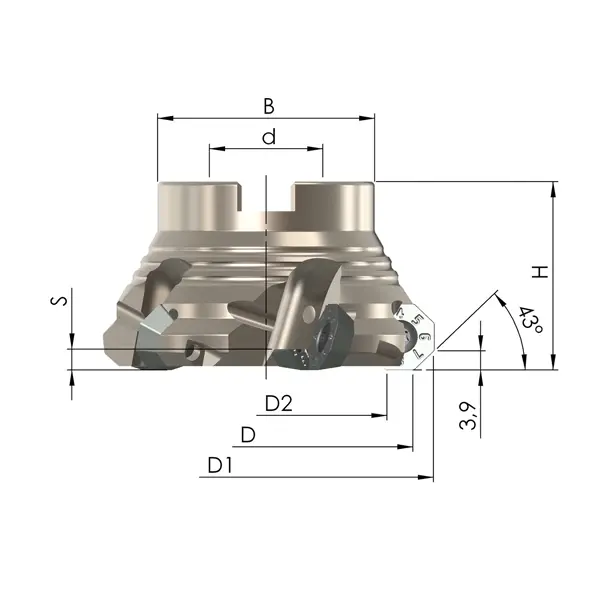

Product image 2 of the product “45PP-125-525-8 ”

45PP-125-525-8

Shell type mill

Product information
Weight 2788 kg
Availability Only a few items in stock
Please take the current stock level into account when planning.
JONGEN SERVICE Not quite right for your application? Our modification service adapts standard tools¹ individually to your requirements. ¹ Subject to technical feasibility
JG_ADD_TO_WISHLIST JG_ADD_TO_WISHLIST_SUBTITLE
JONGEN ONE JG_OPEN_IN_CUTTING_CALC JG_CUTTING_CALC_SUBTITLE
plan ecke nuten tauchen kopier fasen helix
Insert seat
A10
Diameter (D) [mm]
125
Diameter 1 (D1) [mm]
134,3
Diameter 2 (D2) [mm]
112,9
Height (H) [mm]
50
Diameter hole (d h6) [mm]
40
Width of collar (B) [mm]
90
Degrees of freedom (S) [mm]
4,5
Number of teeth (Z)
8
