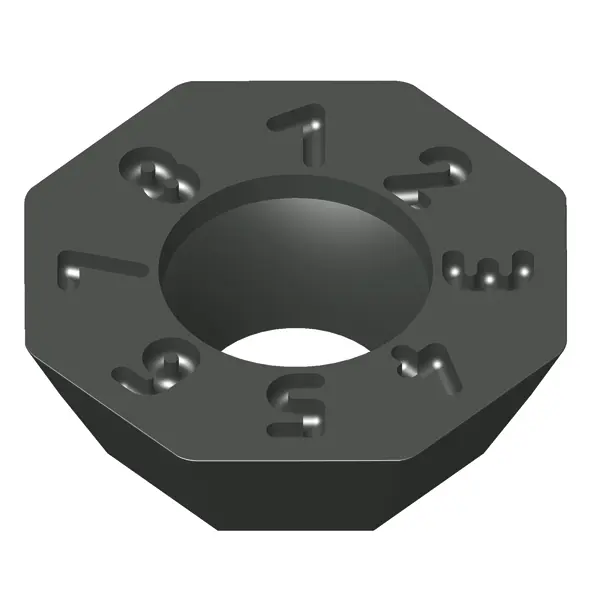

Product image 1 of the product “JMA10-528-HT35 ”

JMA10-528-HT35

Product number: A10GN-19-B

FP 528 HT35

Product information
Weight 69.9 kg
Availability Ready for shipping
JONGEN SERVICE Not quite right for your application? Our modification service adapts standard tools¹ individually to your requirements. ¹ Subject to technical feasibility
JG_ADD_TO_WISHLIST JG_ADD_TO_WISHLIST_SUBTITLE
JONGEN ONE JG_OPEN_IN_CUTTING_CALC JG_CUTTING_CALC_SUBTITLE
Packaging unit
10 piece
JONGEN INFO Alloy surcharge The product shown currently has an alloy surcharge of 17,48 €69.9 g | 100 %
HT35 M gesch
Dimensions
IC 14,7 x 4,9
Insert seat
A10
fz [mm]
0,20 (0,10-0,40)
vc [m/min] steel
160 (120-220)
vc [m/min] stainless
200 (100-300)
vc [m/min] highly heat-resistant
60 (40-200)
Packaging Unit (VPE)
10
prior order number
FP 528 HT35
