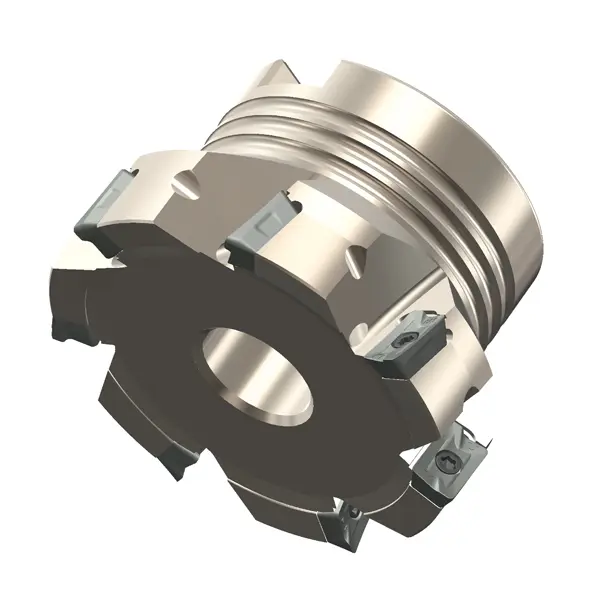

90PP-040-75-16-5

Insert seat

B17

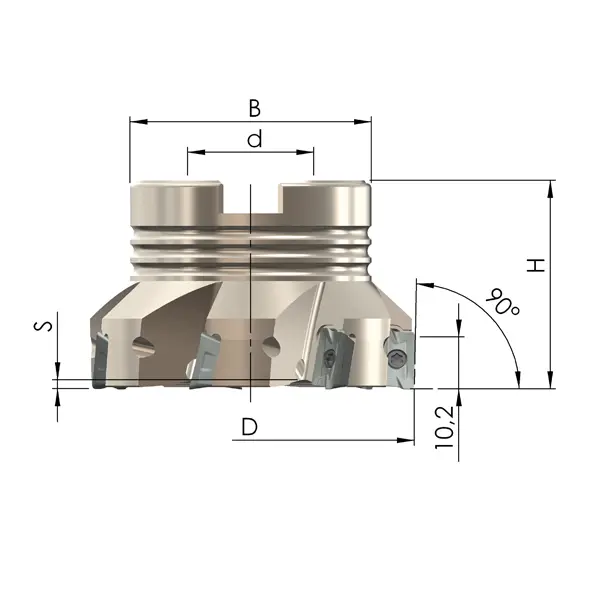

Diameter (D) [mm]

40

Height (H) [mm]

40

Diameter hole (d h6) [mm]

16

Width of collar (B) [mm]

38

Degrees of freedom (S) [mm]

2,0

Number of teeth (Z)

5

JMB17-76MR08-XC35 JMB17-76MR08-XC34 JMB17-275R04-HT20 JMB17-275R04-HT32 JMB17-275R04-HT45 JMB17-275R08-HT20 JMB17-76R04-HT30 JMB17-75R10-HT30 JMB17-75R10-HT32 JMB17-76R04-KT28 JMB17-275R08-HT32 JMB17-75R10-HT45 JMB17-75R10-HT50 JMB17-76R08-XC34 JMB17-75R10-KT28 JMB17-76R04-K15M JMB17-76R04-HT50 JMB17-76R06-K15M JMB17-76R02-K15M JMB17-275R08-HT45 JMB17-76R06-HT30 JMB17-75MR10-HC30 JMB17-76R06-HT50 JMB17-75MR10-HC45 JMB17-76R06-KT28 JMB17-75R04-HT30 JMB17-76R08-HT30 JMB17-75R04-HT32 JMB17-76R08-HT50 JMB17-75R04-HT45 JMB17-75R04-HT50 JMB17-76R08-KT28 JMB17-75R04-KT28 JMB17-76R08-XC35
