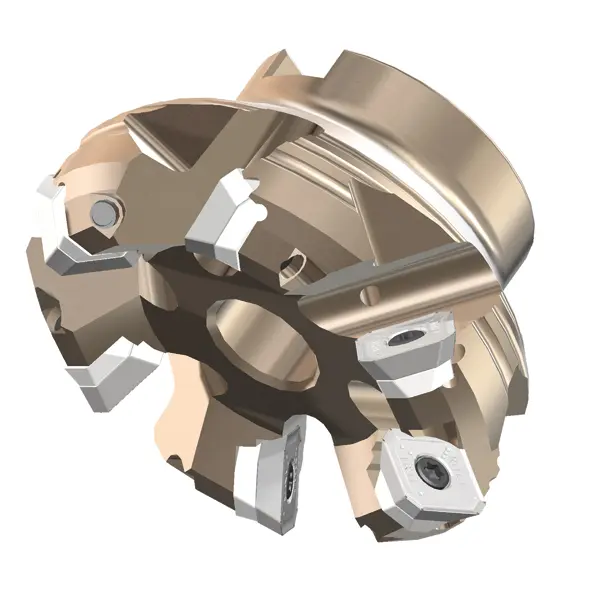

45PP-125-140-12

Insert seat

A13

Diameter (D) [mm]

125

Diameter 1 (D1) [mm]

138,6

Height (H) [mm]

50

Diameter hole (d h6) [mm]

40

Width of collar (B) [mm]

90

Degrees of freedom (S) [mm]

6,3

Number of teeth (Z)

12

Indication

Please follow the assembly instructions for the insert JMA13-147

JMA13-240-HT32 JMA13-240-HT45 JMA13-242-HT20 JMA13-242-HT32 JMA13-242-HT45 JMA13-245-HT20 JMA13-245-HT45 JMA13-145-KT28 JMA13-141-CT10 JMA13-141-HT50 JMA13-141-KT28 JMA13-146-HT35 JMA13-146-HT50 JMA13-146-XC35 JMA13-140-HT30 JMA13-147-HT20 JMA13-140-HT32 JMA13-140-HT50 JMA13-140-K15M JMA13-142-HT32 JMA13-142-HT45 JMA13-240-K15M JMA13-142-HT50 JMA13-146-K15M JMA13-142-KT28 JMA13-145-HT45 JMA13-146-XC34 JMA13-145-HT50
