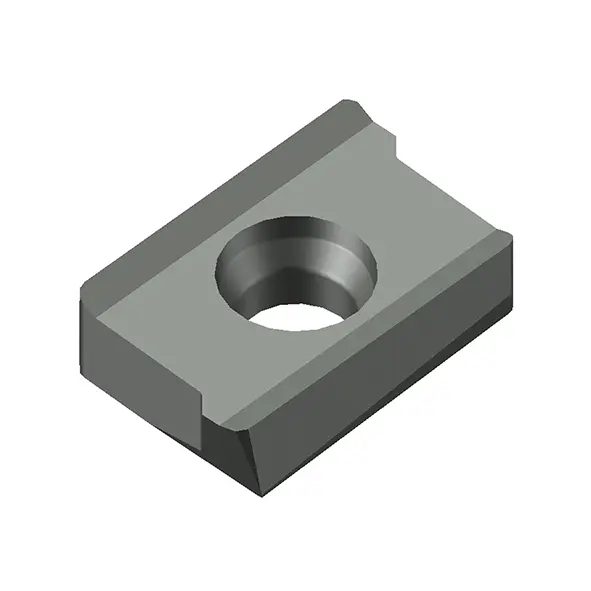

Product image 1 of the product “JMB03-71A-Ti20 ”

JMB03-71A-Ti20

Product number: B03HA-01-A

FP 71 A TI20

Weight 47.8 kg

Availability Ready for shipping

JONGEN SERVICE Not quite right for your application? Our modification service adapts standard tools¹ individually to your requirements. ¹ Subject to technical feasibility

JG_ADD_TO_WISHLIST JG_ADD_TO_WISHLIST_SUBTITLE

JONGEN ONE JG_OPEN_IN_CUTTING_CALC JG_CUTTING_CALC_SUBTITLE

Packaging unit

20 piece

JONGEN INFO Alloy surcharge The product shown currently has an alloy surcharge of 11,95 €47.8 g | 100 %

Specification

Dimensions: 10,0 x 7,0 x 3,18
Insert seat: B03
fz [mm]: 0,15 (0,10-0,30)
vc [m/min] steel: 250 (220-280)
vc [m/min] stainless: 220 (180-300)
vc [m/min] cast iron: 260 (180-350)
Packaging Unit (VPE): 20
prior order number: FP 71 A Ti20

Media

Kompatible Trägerwerkzeuge

90PP-040-10-16-5

90PP-040-10-16-6

90PP-040-10-22-5

90PP-040-10-22-6
