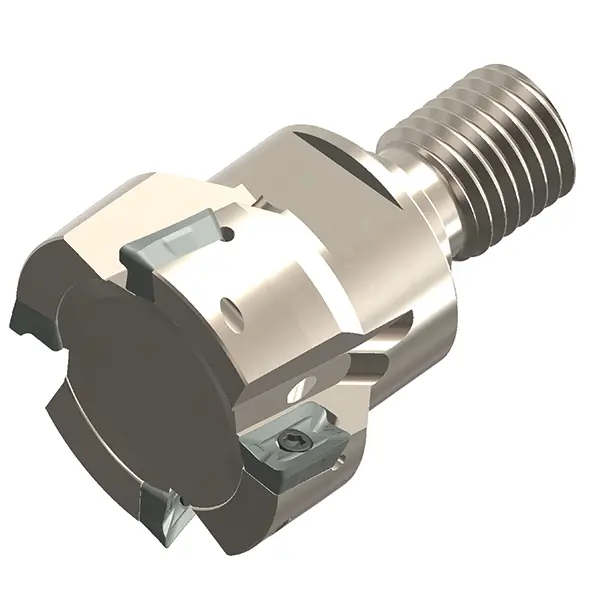

ESF-20-27-M10-75-2

Insert seat

B17

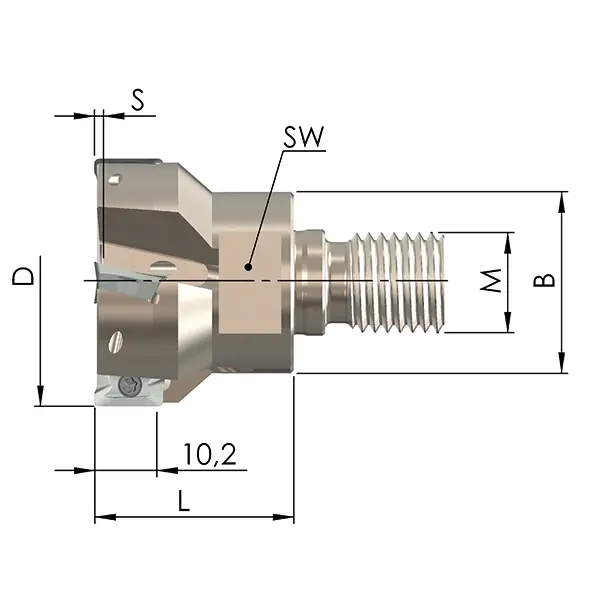

Diameter (D) [mm]

20

Length (L) [mm]

27

Width of collar (B) [mm]

18

Thread Size (M)

M10

Width across flats (SW)

16

Degrees of freedom (S) [mm]

2,0

Number of teeth (Z)

2

JMB17-76MR08-XC35 JMB17-76MR08-XC34 JMB17-275R04-HT20 JMB17-275R04-HT32 JMB17-275R04-HT45 JMB17-275R08-HT20 JMB17-76R04-HT30 JMB17-75R10-HT30 JMB17-75R10-HT32 JMB17-76R04-KT28 JMB17-275R08-HT32 JMB17-75R10-HT45 JMB17-75R10-HT50 JMB17-76R08-XC34 JMB17-75R10-KT28 JMB17-76R04-K15M JMB17-76R04-HT50 JMB17-76R06-K15M JMB17-76R02-K15M JMB17-275R08-HT45 JMB17-76R06-HT30 JMB17-75MR10-HC30 JMB17-76R06-HT50 JMB17-75MR10-HC45 JMB17-76R06-KT28 JMB17-75R04-HT30 JMB17-76R08-HT30 JMB17-75R04-HT32 JMB17-76R08-HT50 JMB17-75R04-HT45 JMB17-75R04-HT50 JMB17-76R08-KT28 JMB17-75R04-KT28 JMB17-76R08-XC35
