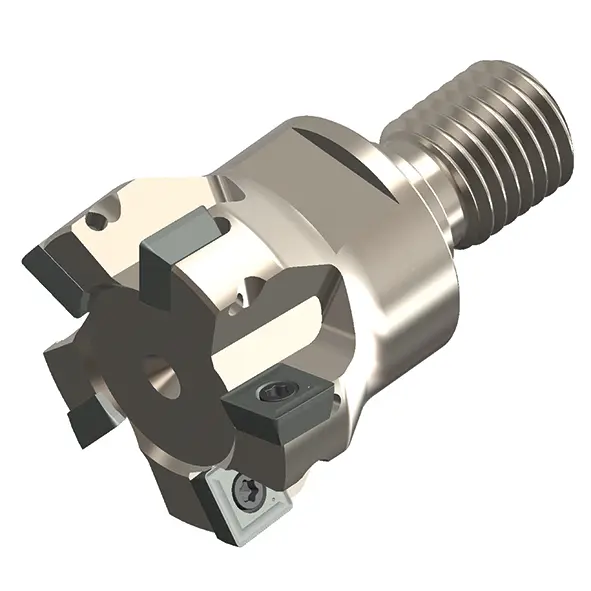

Product image 1 of the product “ESF-22-M10-328-2 ”

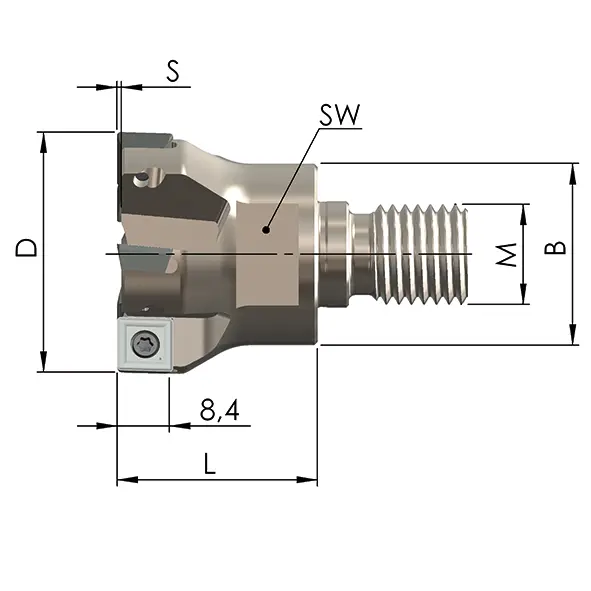

Product image 2 of the product “ESF-22-M10-328-2 ”

ESF-22-M10-328-2

Screw-In cutter

Product information
Weight 57 kg
Availability Ready for shipping
JONGEN SERVICE Not quite right for your application? Our modification service adapts standard tools¹ individually to your requirements. ¹ Subject to technical feasibility
JG_ADD_TO_WISHLIST JG_ADD_TO_WISHLIST_SUBTITLE
JONGEN ONE JG_OPEN_IN_CUTTING_CALC JG_CUTTING_CALC_SUBTITLE
plan ecke nuten helix
Insert seat
B12
Diameter (D) [mm]
22
Length (L) [mm]
27
Width of collar (B) [mm]
18
Thread Size (M)
M10
Width across flats (SW)
16
Degrees of freedom (S) [mm]
0,5
Number of teeth (Z)
2
