Specification
- Insert seat
- B12

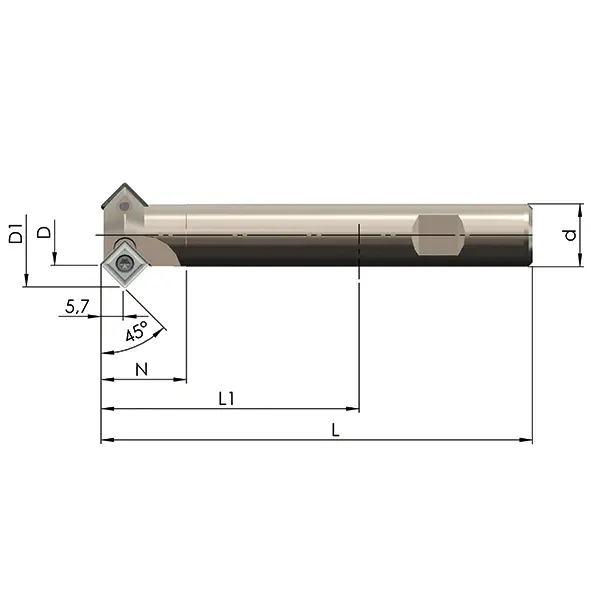

- Diameter (D) [mm]
- 12
- Diameter 1 (D1) [mm]
- 23,75
- Length (L) [mm]
- 110
- Length 1 (L1) [mm]
- 62
- Shank Diameter (dh6) [mm]
- 16
- Utility depth (N) [mm]
- 22
- Number of teeth (Z)
- 1
- Indication
- Chamfering by reverse operation not possible!
