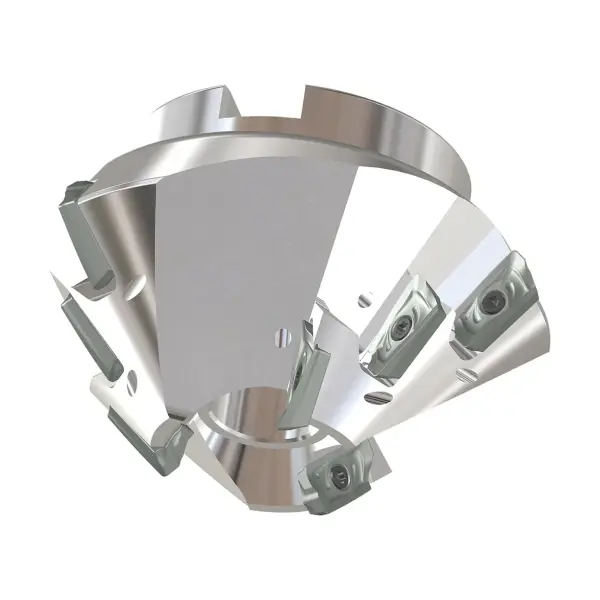

ASF-34-30-B25-21

Insert seat

B25

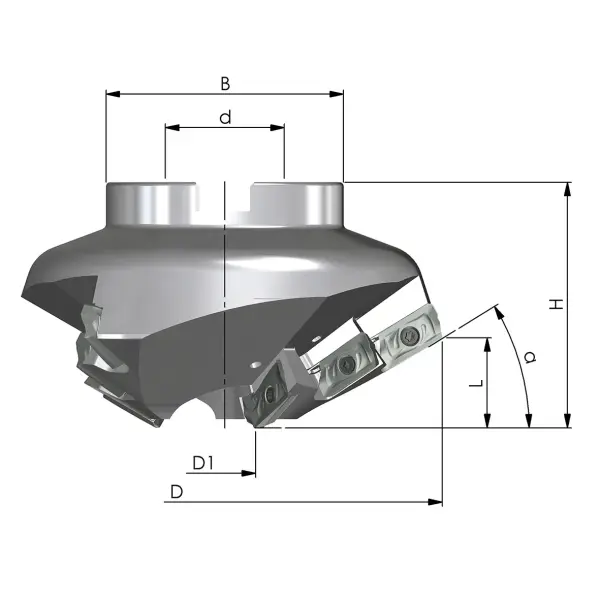

Diameter (D) [mm]

108,0

Diameter 1 (D1) [mm]

34

Angle (a) [°]

30°

Height (H) [mm]

60

Length (L) [mm]

21,5

Diameter hole (d h6) [mm]

27

Width of collar (B) [mm]

58

Number of teeth (Z)

3x3

JMB25-70AR08-HC20 JMB25-70MR08-HC45 JMB25-70MR20-HC45 JMB25-70MR08-K15M JMB25-70AR08-XC34 JMB25-70MR04-HC45 JMB25-70MR12-HC45 JMB25-70MR20-K15M JMB25-70MR12-K15M JMB25-70AR08-HC30 JMB25-70SR08-HC30 JMB25-70MR12-XC34 JMB25-70MR04-K15M JMB25-70MR16-XC34 JMB25-70MR25-K15M JMB25-70AR08-HC45 JMB25-70MR08-XC34 JMB25-70SR08-HC20 JMB25-70MR25-XC34 JMB25-70MR04-XC34 JMB25-70HR08-HC45 JMB25-70SR08-HC45 JMB25-70AR08-XC35 JMB25-70MR25-HC45 JMB25-70MR02-HC45 JMB25-70MR08-XC35 JMB25-70MR02-K15M JMB25-70MR16-K15M JMB25-70HR08-HC30 JMB25-70MR16-HC45 JMB25-70MR20-XC34 JMB25-70MR02-XC34 JMB25-70AR04-K15M JMB25-70HR08-HC20
